Mirage 2.0 Orthodontic Patient Chair, 3000-2.0
A hydraulic patient chair with steel base, wide back and full lumbar support, double articulating headrest with sliding height adjustment, and 4 programmable positions with automatic return. Shown here as supplied with the Mirage 2.0 Orthodontic Package.
Standard features
- Synchronous backrest
- Articulating dual axis headrest
- Laser cut steel base
- Long pump cover
- Hydraulic pump for quiet operation
- Programmable foot control
Specifications
Model 3000-2.0
| Model | 3000-2.0 |
|---|---|
| Base | Laser cut steel base, hydraulic pump |
| Backrest | Synchronous backrest, wide back with full lumbar support |
| Headrest | Double articulating headrest with sliding height adjustment; optional pony tail headrest |
| Chair swivel | 30° left and right of center |
| Positions | 4 programmable positions with automatic return and foot control |
| Chair size (L x W x H, in) | 44 x 29 x 33 |
Product includes
- Hydraulic patient chair with steel base
- Wide back with full lumbar support
- Double articulating headrest with sliding height adjustment
- 30 degree swivel from left and right of center
- 4 programmable positions with automatic return
- Programmable foot control

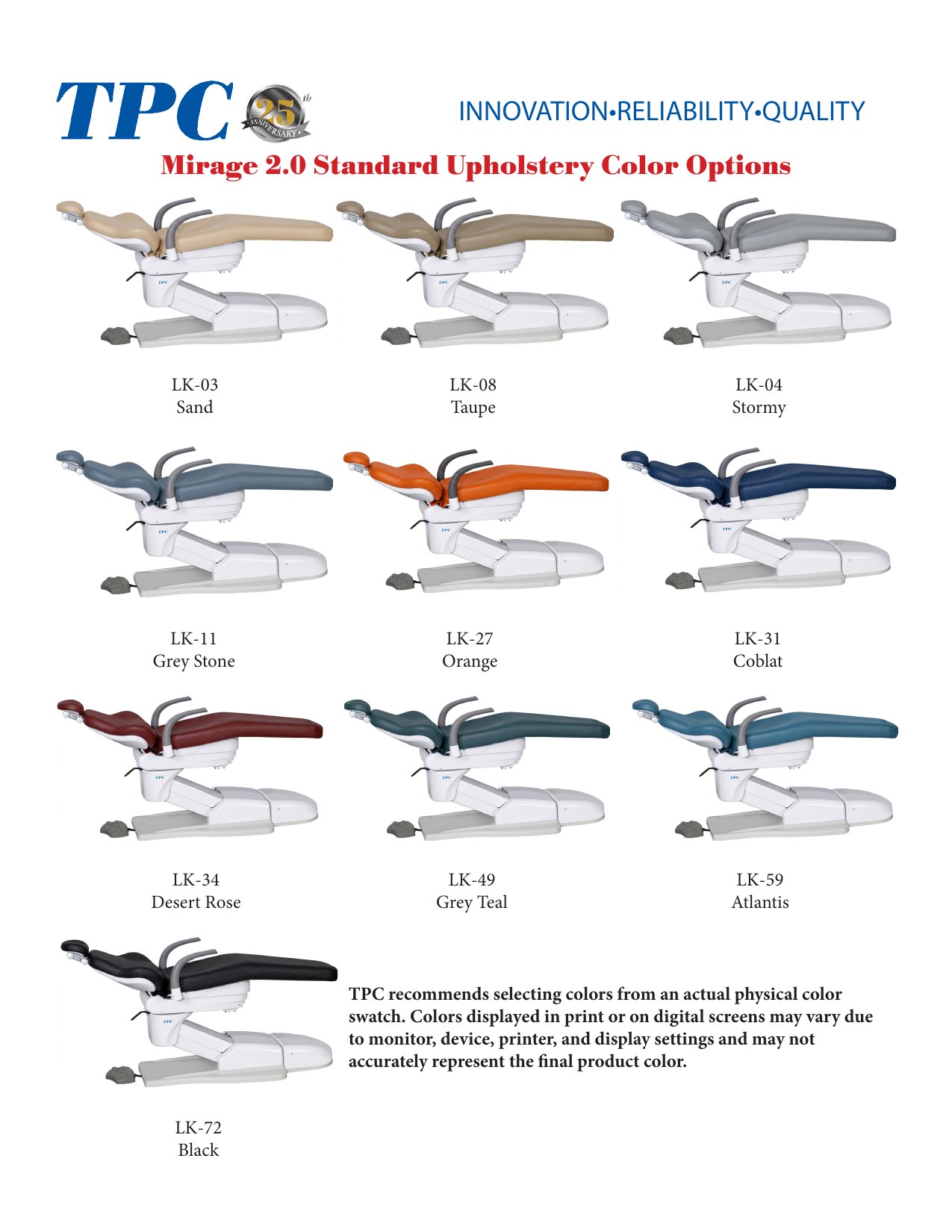

Mirage 2.0 upholstery color chart
All standard upholstery colors shown on the chair. Download the chart to share with customers.
TPC recommends selecting colors from an actual physical color swatch. Colors displayed in print or on digital screens may vary due to monitor, device, printer, and display settings and may not accurately represent the final product color. Specify color and product code when ordering.
Download Color Chart (PDF)Options
Options are not factory-installed unless specified on the purchase order. Additional charges apply. Contact TPC for pricing.
| TP-2005 | Touch pad control, chair mounted, 3 preset, auto return, last position |
|---|---|
| M4000-09 | Optional magnetic headrest |
| PTH 101 | Pony tail headrest |
