Mirage 2.0 Hydraulic Patient Chair with Cast Aluminum Base, 3000-2.0-CB
Hands-free foot control positioning with two programmable positions plus an entry/exit position and last position. Cast aluminum base and a wide, reinforced seat, without armrests.
Standard features
- Synchronous backrest
- Articulating dual axis headrest
- Cast aluminum base
- Programmable foot control
- Long pump cover
Specifications
Model 3000-2.0-CB
| Model | 3000-2.0-CB |
|---|---|
| Lifting / lowering | Hydraulic, cantilever type |
| Initial height / stroke | 15.5" / 15" |
| Backrest reclining angle | 0° (horizontal) to 70° |
| Seat tilting | 10° to 20°, synchronized with backrest |
| Preset positions | Microcomputer control; three preset positions, auto return, last position |
| Chair rotation | 30° left / 30° right of centerline |
| Headrest | Dual axis type |
| Safety shut-off plate | Under the main link |
| Emergency stop | Any switch can cancel chair movement |
| Input voltage | 110V or 220V |
| Chair size (L x W x H, in) | 44 x 29 x 34 |
| Warranty | 5 Year Limited |
Product includes
- Two programmable positions
- One preset exit position
- Electronic foot control with auto return function
- Built-in fuse / surge protection
- Toe guard protection to prevent scuffing
- All-metal construction
- Safety shut-off base plate
- Double articulating headrest, adjustable for height and wheelchair positioning
- Chair top swivel with lock, 60 degree
- Seamless upholstery
- Wide chair back
- Coordinated leg rest tilt
Standard upholstery colors
TPC recommends selecting colors from an actual physical color swatch. Colors displayed in print or on digital screens may vary due to monitor, device, printer, and display settings and may not accurately represent the final product color. Swatches shown here are approximate. Specify color and product code when ordering.

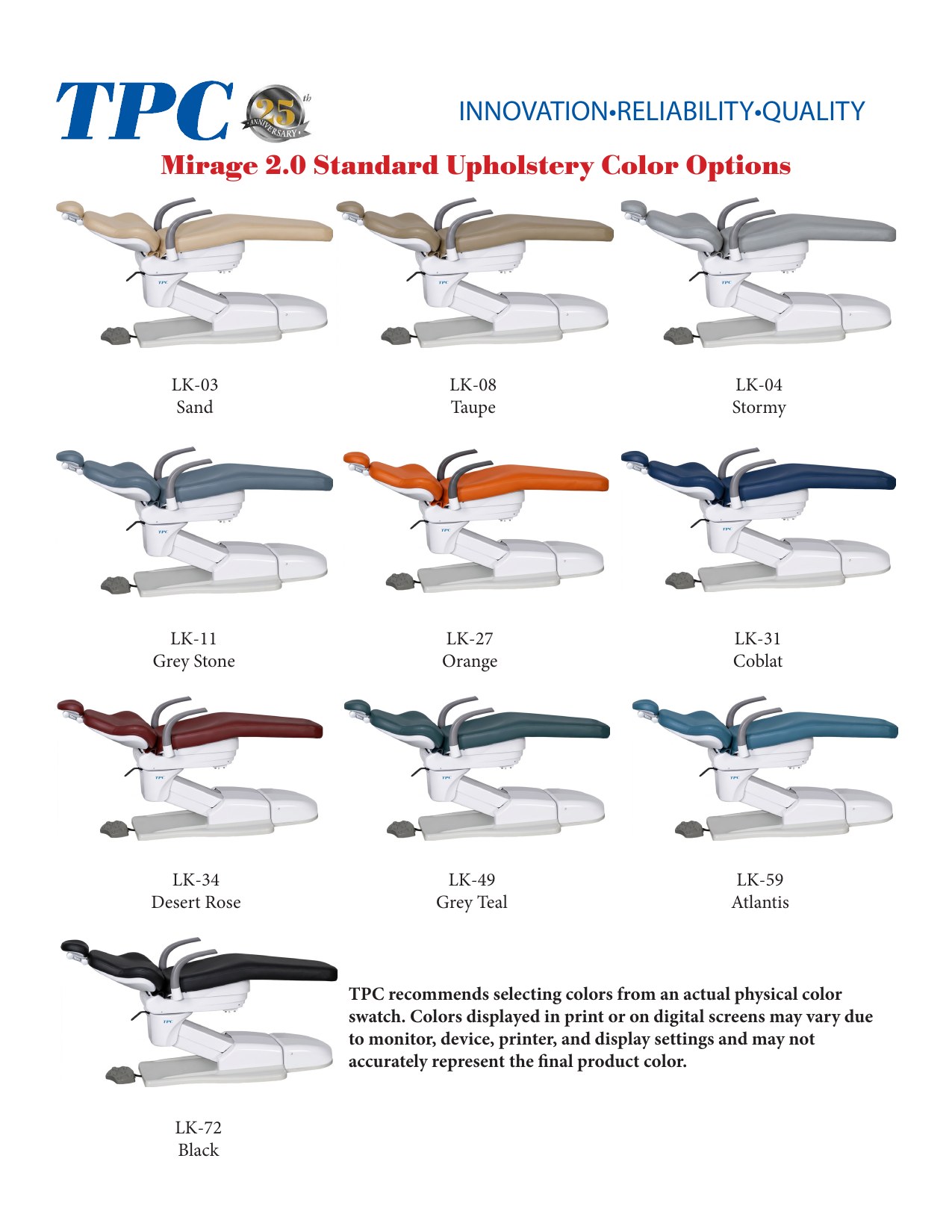

Mirage 2.0 upholstery color chart
All standard upholstery colors shown on the chair. Download the chart to share with customers.
TPC recommends selecting colors from an actual physical color swatch. Colors displayed in print or on digital screens may vary due to monitor, device, printer, and display settings and may not accurately represent the final product color. Specify color and product code when ordering.
Download Color Chart (PDF)Options
Options are not factory-installed unless specified on the purchase order. Additional charges apply. Contact TPC for pricing.
| TP-2005 | Touch pad control, chair mounted, 3 preset, auto return, last position |
|---|---|
| TPC-BRKT-2.0 | Mirage M4000-2.0 post mount chair bracket |
| PC-1000-DU | Replacement dental chair upholstery, LK vinyl, wide back |
| PC-1000-Vinyl-UC | Upcharge: non-standard dental chair upholstery, vinyl, wide back |
| PC-1000-ULTR-UC | Upcharge: Ultra leather dental chair upholstery, wide back |
| PC-1000-PR-UC | Upcharge: NaguaSoft dental chair upholstery, vinyl, wide back (PR50, 49, 47, 40, 37) |
